Power Products 3030SB | Gold Sealed 30/30 Spring Brake Chamber

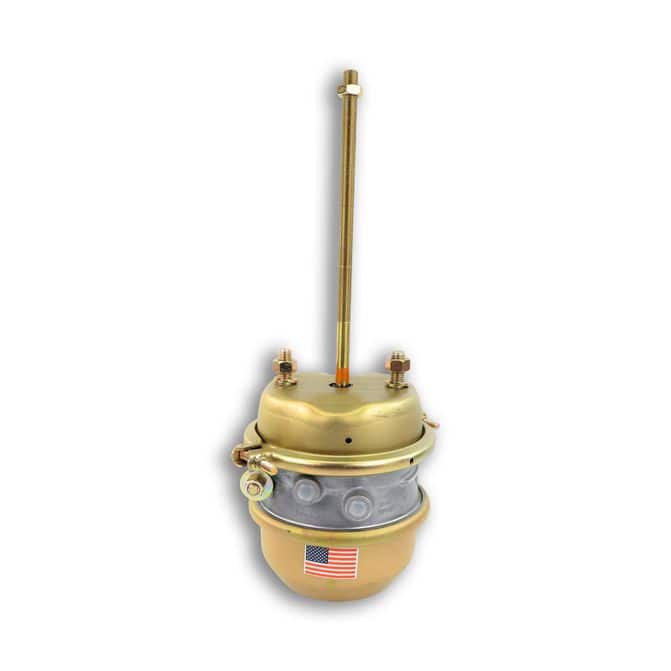

Power Products 3030SB Gold Sealed 30/30 Spring Brake Chamber

The Power Products 3030SB Gold Sealed Spring Brake Chamber is a heavy-duty Type 30/30 combination air brake chamber designed for compatible commercial trucks and trailers. Built with a corrosion-resistant gold epoxy-coated steel housing, reinforced mounting studs, and protective dust shielding, this standard-stroke brake chamber is engineered for demanding highway and vocational applications.

Featuring a 2.5-inch standard stroke, Type 30 service chamber, and Type 30 spring parking brake chamber, the Power Products 3030SB combines service braking and spring-applied parking/emergency braking functions in one assembly.

Whether you're replacing a leaking air brake chamber, servicing a commercial truck's braking system, or maintaining a fleet of heavy-duty vehicles, the 3030SB spring brake chamber provides a durable replacement option when its specifications match the original equipment.

Power Products 3030SB Features & Benefits

• Type 30/30 Combination Chamber: Combines service brake and spring parking brake functions in one assembly.
• Standard 2.5-Inch Stroke: Designed for compatible standard-stroke air brake applications.
• Gold Epoxy-Coated Housing: Helps protect the steel chamber housing against rust and corrosion.
• Epoxy-Coated Springs: Coated return and power springs provide additional corrosion protection.
• Reinforced Mounting Studs: Provide mounting rigidity and help resist damage during demanding service.
• Protective Dust Shield: Helps keep dirt, sand, moisture, and other contaminants away from vulnerable components.
• Heavy-Duty Steel Construction: Built for demanding commercial vehicle operating environments.
• SAE-Standard Fasteners: Fasteners are specified to meet applicable SAE tensile-strength requirements.
• Sealed Spring Brake Design: Designed for durable operation in compatible heavy-duty air brake systems.
• Commercial Truck & Trailer Applications: Suitable for properly matched Type 30/30 brake assemblies.

Heavy-Duty 30/30 Spring Brake Chamber for Semi Trucks

A spring brake chamber is an essential part of a commercial vehicle's air braking system. Combination spring brake chambers perform two important functions:

• Service Braking: Compressed air acts on the service diaphragm to apply the foundation brakes during normal braking.
• Parking and Emergency Braking: A powerful internal spring applies the brakes when parking-brake release pressure is removed or insufficient.

The Power Products 3030SB is intended for compatible heavy-duty trucks and trailers equipped with Type 30/30 standard-stroke spring brake chambers.

Potential applications include:

• Class 7 and Class 8 semi trucks
• Commercial truck tractors
• Heavy-duty trailers
• Vocational trucks
• Dump trucks
• Fleet maintenance vehicles
• Other compatible air-brake-equipped commercial vehicles

Important: Fitment must be confirmed by the original brake chamber specifications, mounting configuration, pushrod requirements, and stroke designation. Vehicle make and model alone do not guarantee compatibility.

Gold Epoxy Coating for Corrosion Protection

The Power Products 3030SB features a gold epoxy-coated steel housing designed to help protect against corrosion caused by road moisture, dirt, and harsh operating environments.

Its return and power springs are also epoxy coated, providing additional protection for internal spring components. This construction makes the chamber a practical choice for commercial vehicles exposed to demanding road conditions.

Reinforced Mounting Studs & Protective Dust Shield

Secure mounting and contamination protection are important to long-term brake chamber performance.

The 3030SB brake chamber incorporates reinforced mounting studs to improve rigidity and help prevent mounting-related damage. Its protective dust shield helps reduce the entry of road dirt, sand, and moisture.

Standard Stroke vs. Long Stroke Brake Chambers

The Power Products 3030SB is a standard-stroke Type 30/30 brake chamber with a nominal 2.5-inch maximum stroke.

Standard-stroke and long-stroke chambers are not automatically interchangeable. Long-stroke Type 30/30 chambers may have different travel capabilities, identification markings, and application requirements.

Do not substitute a standard-stroke chamber for a long-stroke chamber. Always verify the required stroke type before ordering.

Power Products 3030SB Cross References

Common commercial truck parts catalog references associated with the Power Products 3030SB include:

• Power Products: 3030SB, 3030SB-PDC
• Automann: 179.SB3030S
• Haldex: 12500
• MGM Brakes: 3430051, 3431051, 3531051
• Euclid: EGC3030
• Grote: 53132
• OTR: OTR3030SB, OTR3030SB2
• Additional Catalog Reference: 3030C

Cross-Reference Note: These numbers are provided for parts identification. Brake chamber specifications may vary between manufacturers and individual configurations. Verify stroke, mounting dimensions, pushrod length, clevis requirements, and original equipment specifications before purchasing.

Signs of a Failing Spring Brake Chamber

Brake chamber problems should be inspected promptly because they can affect commercial vehicle braking performance.

Common signs that a brake chamber requires inspection or replacement include:

• Air leakage around the brake chamber
• Failure to release the parking brakes correctly
• Abnormal brake chamber pushrod movement
• Corrosion or visible damage to the chamber housing
• Damaged mounting studs or mounting hardware
• Brake application or release problems
• Failed air brake system inspections

Inspect the complete braking system to determine whether the issue is caused by the chamber, air lines, valves, slack adjuster, foundation brake components, or another related part.

Power Products 3030SB Specifications

• Brand: Power Products
• Product: Gold Sealed Spring Brake Chamber
• Part Number: 3030SB
• Catalog MPN: 3030SB-PDC
• Product Type: Combination Spring Brake Chamber
• Chamber Size: Type 30/30
• Service Chamber Size: Type 30
• Spring Chamber Size: Type 30
• Stroke Type: Standard
• Maximum Stroke: 2.50 Inches
• Pushrod Length: 8.00 Inches
• Mounting Stud Spacing: 4.75 Inches, Center to Center
• Mounting Stud Threads: 5/8-11
• Spring Housing Outer Diameter: 8.21 Inches
• Housing Construction: Heavy-Duty Steel
• Finish: Gold Epoxy Coating
• Internal Springs: Epoxy-Coated Return and Power Springs
• Application: Compatible Heavy-Duty Truck and Trailer Air Brake Systems
• Quantity: 1 Brake Chamber

Installation & Fitment Verification

Before installing the Power Products 3030SB, verify the original brake chamber size, stroke designation, mounting stud spacing, pushrod length, clevis configuration, and all applicable vehicle brake system requirements.

Brake chamber pushrod length and adjustment must be determined according to the manufacturer's service procedure. Do not assume the replacement chamber can be installed without checking the complete brake linkage geometry.

Critical Safety Warning: Spring brake chambers contain a powerful compressed spring that can cause severe injury or death if improperly handled. Never cut, open, or attempt to disassemble the sealed spring brake housing. Follow the manufacturer's approved caging, removal, installation, and testing procedures.

Professional Installation Required: Commercial vehicle air brake systems are safety-critical. Installation, inspection, and adjustment should be performed by qualified technicians following the vehicle and brake manufacturer's instructions.
