PAI 641305 | Detroit DD15 Oil Suction Manifold / Pickup Tube

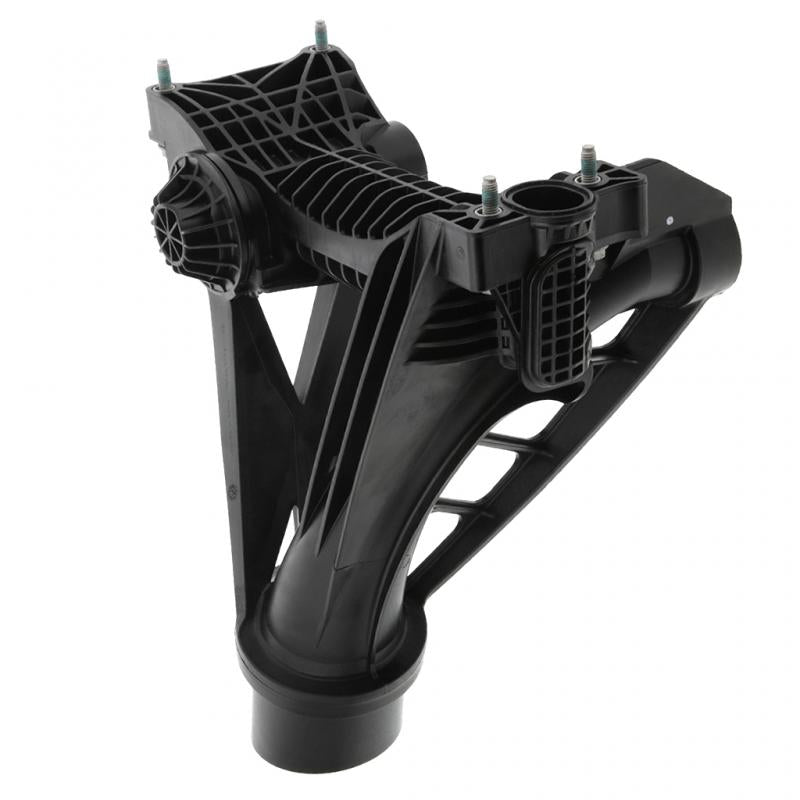

PAI 641305 Detroit DD15 Oil Suction Manifold / Pickup Tube

The PAI 641305 Oil Suction Manifold is a replacement oil pickup component for Detroit Diesel DD15 engines. Also commonly referred to as an oil pump pickup tube, this component draws engine oil from the oil pan and directs it toward the engine's lubrication system.

PAI 641305 is designed as a replacement for Detroit Diesel OEM A4721806851. Detroit service information identifies A4721806851 as the oil suction manifold used on DD13/DD15 applications equipped with a front-sump plastic oil pan.

PAI 641305 Oil Suction Manifold Specifications

• Brand: PAI Industries
• PAI Part Number: 641305
• OEM Part Number: A4721806851
• Application: Detroit Diesel DD15
• Component: Oil Suction Manifold / Oil Pump Pickup Tube
• Engine System: Engine Lubrication / Oil Pump Pickup
• Application Type: Front-sump plastic oil pan

OEM & Cross Reference Numbers

PAI 641305 is cross-referenced to Detroit Diesel oil suction manifold and pickup tube numbers including:

• Detroit Diesel A4721806851
• Detroit Diesel A4721806551
• Detroit Diesel A4721805951
• Detroit Diesel A4721801551
• PAI 641305OEM

Cross-reference numbers are provided for identification purposes. Always verify the exact OEM number and engine configuration before ordering.

Detroit DD15 Oil Pickup Tube Function

The oil suction manifold is positioned in the lower portion of the engine and provides the oil pump with a controlled path for drawing engine oil from the oil pan. Proper oil pickup is essential for maintaining oil flow through the engine lubrication system.

A damaged, cracked, restricted, improperly sealed, or incorrectly fitted oil suction manifold can interfere with proper oil pickup and may contribute to lubrication problems or low oil pressure.

DD15 Fitment Information

The Detroit Diesel A4721806851 oil suction manifold is identified for DD13 and DD15 applications using a front-sump plastic oil pan. Detroit service documentation lists different suction manifold part numbers for different oil-pan configurations, including separate manifolds for aluminum oil pans.

Important: Verify the oil pan configuration, OEM part number, VIN, and/or engine serial number (ESN) before ordering. Do not assume every DD15 uses A4721806851.

PAI 641305 Replacement Oil Pickup

PAI 641305 provides a replacement solution for the Detroit DD15 oil suction manifold / pickup tube. The component is designed to maintain the proper oil pickup path between the engine oil pan and oil pump.

Fitment Note: For the most accurate DD15 application, verify your existing OEM number and engine configuration before purchase. Detroit identifies A4721806851 specifically for DD13/DD15 front-sump plastic oil pan applications.
