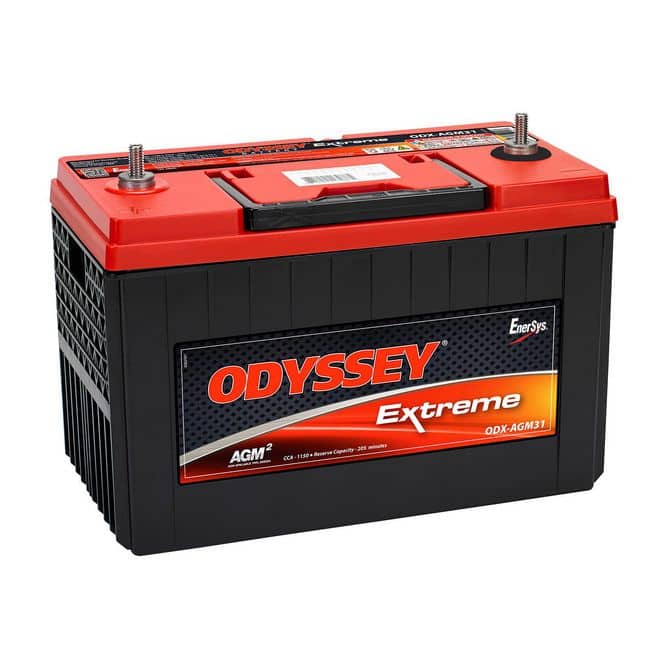

ODYSSEY ODX-AGM31 | Group 31 Extreme Series AGM Battery – 1150 CCA

ODYSSEY ODX-AGM31 | Group 31 Extreme Series AGM Battery

The ODYSSEY ODX-AGM31 is a Group 31 Extreme Series AGM battery engineered for demanding commercial, heavy-duty, fleet, agricultural, and industrial applications. Built using Thin Plate Pure Lead (TPPL) AGM technology, the ODX-AGM31 combines high starting power with deep-cycle capability in a rugged, non-spillable battery design.

With 1,150 CCA and 2,150 PHCA, the ODX-AGM31 delivers the high starting power required by heavy-duty diesel engines while providing 103 Ah of nominal capacity and up to 220 minutes of reserve capacity.

ODYSSEY ODX-AGM31 Features

• Group 31 heavy-duty battery
• 12-volt AGM battery
• Thin Plate Pure Lead (TPPL) technology
• 1,150 Cold Cranking Amps (CCA)
• 2,150 Pulse Hot Cranking Amps (PHCA)
• 1,545 Hot Cranking Amps (HCA)
• 1,370 Marine Cranking Amps (MCA)
• 103 Ah nominal capacity at 20-hour rate
• 98 Ah nominal capacity at 10-hour rate
• 220 minutes reserve capacity
• 3/8"-16 stainless steel stud terminals
• Non-spillable AGM construction
• Designed for engine starting and deep-cycle applications
• Rugged construction for demanding operating environments
• Operating temperature range of -40°F to 176°F

Group 31 AGM Battery for Heavy-Duty Diesel Trucks

The ODYSSEY ODX-AGM31 is designed for commercial vehicles that demand substantial starting power and dependable battery performance. Its Group 31 footprint makes it suitable for many heavy-duty truck, fleet, agricultural, construction, and industrial battery applications that specify a Group 31 battery.

The TPPL AGM design uses pure lead plates tightly packed into the battery to provide high power density and resistance to the shock and vibration associated with demanding vehicle applications.

High Starting Power for Diesel Engines

Diesel engines require significant electrical power during starting, particularly in cold-weather conditions. The ODX-AGM31 provides 1,150 CCA and 2,150 PHCA to deliver substantial starting power for heavy-duty applications.

The battery also provides 103 Ah of nominal capacity and 220 minutes of reserve capacity, providing additional electrical energy for vehicle systems and accessories when required.

AGM & TPPL Battery Construction

The ODX-AGM31 uses Absorbed Glass Mat (AGM) construction combined with ODYSSEY Thin Plate Pure Lead technology. AGM construction makes the battery non-spillable and helps it withstand vibration and demanding installation environments.

ODYSSEY states that its Extreme Series batteries are designed to provide high starting power, rapid recovery, and durability for commercial and heavy-duty applications.

ODYSSEY ODX-AGM31 Specifications

Heavy-Duty Applications

• Class 8 trucks
• Heavy-duty diesel trucks
• Freightliner trucks
• Peterbilt trucks
• Kenworth trucks
• International trucks
• Volvo trucks
• Mack trucks
• Western Star trucks
• Fleet vehicles
• Agricultural equipment
• Construction equipment
• Industrial equipment
• Other vehicles requiring a Group 31 AGM battery

ODYSSEY Extreme Series Battery

The ODX-AGM31 is part of the ODYSSEY Extreme Series, which is designed for applications requiring high starting power and durable battery construction. ODYSSEY lists the battery as a dual-purpose design capable of supporting both engine starting and deep-cycle use.

The battery's rugged construction is designed to withstand vibration and demanding operating conditions commonly encountered in commercial vehicles and equipment.

Fitment Note

Verify the vehicle's required battery group size, terminal configuration, physical dimensions, polarity, and charging system before ordering. The ODX-AGM31 uses 3/8"-16 stud terminals and measures approximately 13.0 x 6.8 x 9.5 inches. ODYSSEY also offers other Group 31 configurations, including the ODX-AGM31A with SAE terminals and the ODX-AGM31R with a different terminal layout.

Always replace batteries with the correct configuration specified by the vehicle or equipment manufacturer.
